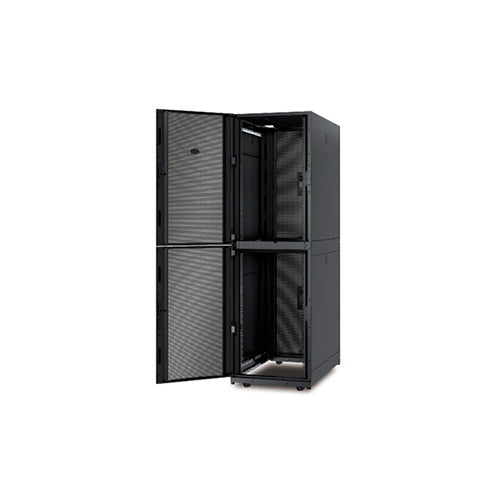

APC AR3200 NetShelter SX Colocation 2 x 20U 600mm Wide x 1070mm Deep Enclosure with Sides Black Price in Dubai UAE
SKU: AR3200
|
Specifications
|
||
|---|---|---|
| Manufacturer | APC by Schneider Electric | |
| Model | AR3200 | |
| Product Line | NetShelter SX Colocation | |
| Rack Configuration | 2 × 20U sections (total 40U) | |
| Rack Width | 19″ EIA‑310 standard | |
| External Dimensions (H × W × D) | Approx. 1981 mm × 600 mm × 1070 mm | |
| Net Weight | Approx. 140–160 kg | |
| Shipping Weight | Depends on packaging | |
| Mounting Depth (Min–Max) | Approx. 190 mm – 915 mm | |
| Static Load Capacity | Up to ~1700 kg (3750 lbs) | |
| Dynamic Load Capacity | Up to ~1020 kg (2250 lbs) | |
| Front Doors | Lockable, perforated steel (2 sections) | |
| Rear Doors | Lockable, perforated steel (2 sections) | |
| Vertical Rails / Posts | 16‑gauge or 14‑gauge EIA‑310 mounting rails | |
| Roof / Top Panel | 18‑gauge steel | |
| Side Panels | 18‑gauge steel, removable | |
| Protection Rating | IP20 | |
| Color | Black | |
| Included Components | Side panels, front & rear doors, roof, casters, leveling feet, baying hardware, keys, mounting hardware | |
| Compliance Standards | EIA‑310E, UL 2416, UL 60950‑1 | |
|
