Specifications
|
||
|---|---|---|

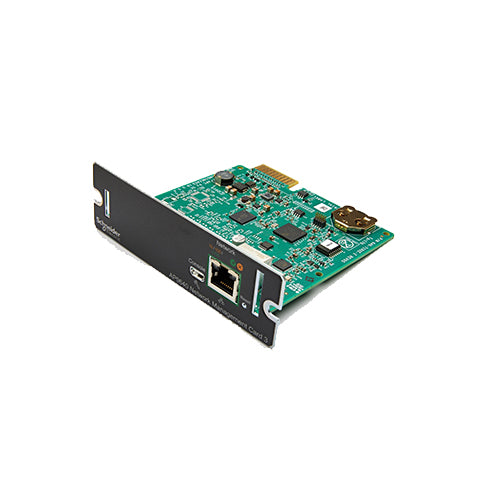

| Product Name | UPS Network Management Card 3 | |
| Model Number | AP9640 | |
| Manufacturer | Schneider Electric | |
| Brand | APC | |
| Product Type | Network Management Card (NMC3) | |
| Application | Remote monitoring and network management of APC UPS systems | |
| Compatible UPS | APC Smart‑UPS and select Symmetra models with SmartSlot support | |
| Network Interface | Gigabit Ethernet (10/100/1000 Mbps) | |
| Ethernet Port | 1 × RJ‑45 | |
| USB Interface | 1 × Micro‑USB console port | |
| Protocols Supported | HTTPS/SSL, SSH, SNMPv1/v2c/v3, BACnet/IP, Modbus TCP/IP, IPv6 | |
| Remote Access | Web browser interface, CLI (SSH/Telnet), SNMP management | |
| Security Features | SSL encryption, SNMPv3, role‑based user access, secure boot | |
| Event & Alerts | Configurable notifications via email, SNMP traps, and Syslog | |
| Logging | Detailed event logging with trend support | |
| Management Integration | EcoStruxure IT and SNMP‑based network management systems | |
| PowerChute Integration | PowerChute Network Shutdown software compatible | |
| Environmental Monitoring | Optional sensor integration for temperature/humidity (varies by UPS) | |
| Dimensions (H × W × D) | Approx. 3.8 × 12.1 × 11.4 cm | |
| Net Weight | ~0.08 kg | |
| Operating Temperature | 0 °C to 45 °C | |
| Storage Temperature | −5 °C to 45 °C | |
| Operating Humidity | 0–95 % RH (non‑condensing) | |
| Operating Altitude | Up to 3048 m (10,000 ft) | |
| Certifications | EN 55022, EN 55024, FCC Part 15, ICES‑003, VCCI, AS/NZS 3548 | |
| Included Accessories | Installation manual, USB console cable | |
|
