New

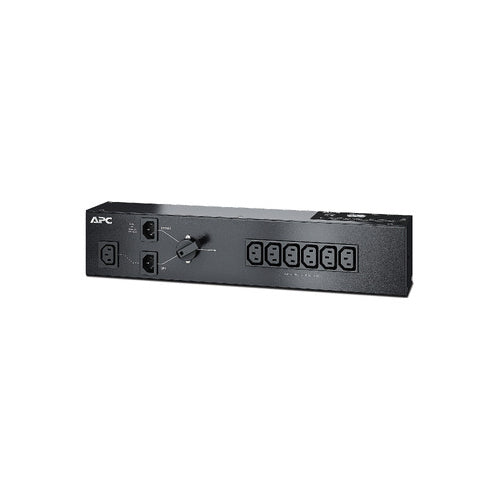

APC SBP1500RMI Service Bypass Panel, 230V, 10A, BBM, IEC C14 Input, (6) IEC C13 Outputs Price in Dubai UAE
by
APC
SKU: SBP1500RMI
|
Specifications
|
||
|---|---|---|
| Product Name | APC Service Bypass Panel | |
| Model Number | SBP1500RMI | |
| Product Type | Maintenance / Service Bypass Panel | |
| Bypass Type | Breaker Bypass Module (BBM) | |
| Nominal Input Voltage | 230 V AC | |
| Nominal Output Voltage | 230 V AC | |
| Input Frequency | 50 / 60 Hz | |
| Maximum Input Current | 10 A | |
| Maximum Output Current | 10 A | |
| Maximum Load Capacity | 2.3 kVA | |
| Power Factor Range | 0 – 1 | |
| Input Connection Type | IEC C14 | |
| Output Connections | (6) IEC C13 | |
| Overload Protection | Circuit Breaker | |
| Efficiency | Up to 99% | |
| Form Factor | Rack-mountable | |
| Rack Height | 1U | |
| Height | 44 mm | |
| Width | 432 mm | |
| Depth | 300 mm | |
| Net Weight | Approx. 5 kg | |
| Colour | Black | |
| Operating Temperature | -20 °C to 50 °C | |
| Operating Relative Humidity | 0% – 95% (non-condensing) | |
| Operating Elevation | Up to 4,572 m | |
| Storage Temperature | -40 °C to 65 °C | |
| Storage Relative Humidity | 0% – 95% (non-condensing) | |
| Storage Elevation | Up to 15,240 m | |
| Certifications / Compliance | UL, CSA (region dependent) | |
|
