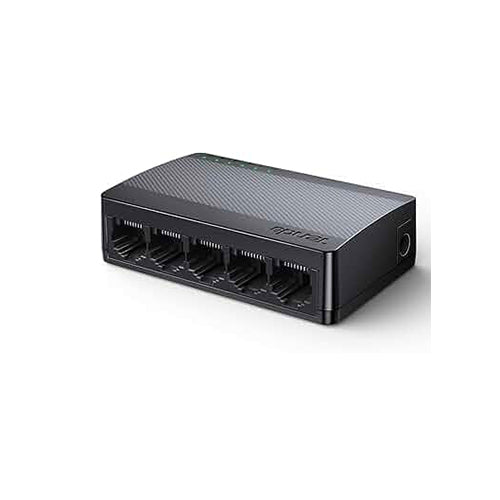

Tenda SG105 V4.0 5-Port Gigabit Ethernet Switch
by
Tenda
SKU: SG105 V4.0
|
Specifications
|
||
|---|---|---|
| Product Name | Tenda SG105 V4.0 5‑Port Gigabit Desktop Switch | |
| Model / Version | V4.0 | |
| Ports | 5 × RJ‑45 10/100/1000 Mbps (Auto-Negotiation, Auto MDI/MDIX) | |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab | |
| Switching Capacity | 10 Gbps | |
| Forwarding Rate | 7.44 Mpps (Million packets per second) | |
| MAC Address Table | 2,000 entries | |
| Buffer Memory | 1 Mb | |
| Jumbo Frame Support | Up to 15,000 bytes | |
| LED Indicators | 1 × Power LED, 5 × Link/Act LEDs (one per port) | |
| Mounting Options | Desktop or Wall-Mount | |
| Dimensions | 93 × 66 × 23 mm (approximate) | |
| Power Supply | External Adapter (Input: 100–240V AC, Output: 5V/0.6A) | |
| Power Consumption | <3W (typically under 1.7W) | |
| Operating Temperature | 0°C to 45°C | |
| Operating Humidity | 10% to 90% RH (non-condensing) | |
| Certifications | CE, FCC, RoHS | |
| Key Features | Plug-and-play, Auto MDI/MDIX, Fanless design, Compact size | |
|
