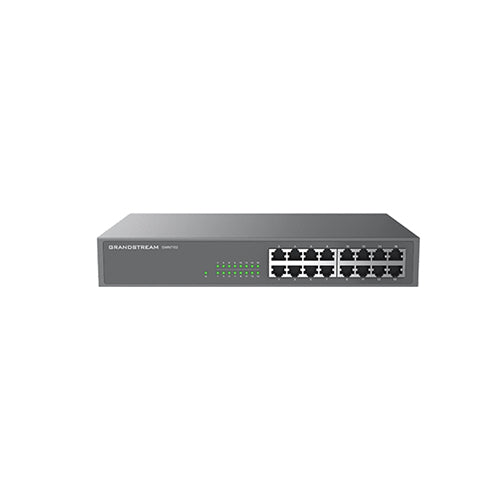

Grandstream Network Switches GWN7702 Series Price in Dubai UAE.
by
Grandstream
SKU: GWN7702
| Feature | Description |
|---|---|
| Product Name | Grandstream GWN7702 |
| Product Type | Managed Layer 2 Switch |
| Number of Ports | 8 Gigabit Ethernet Ports (10/100/1000 Mbps) |
| PoE Ports | 4 x PoE+ Ports (802.3af/at) with a total PoE power budget of 60W |
| Non-PoE Ports | 4 x Gigabit Ethernet Ports (10/100/1000 Mbps) |
| Port Configuration | 8 x Gigabit Ethernet Ports (4 x PoE, 4 x Non-PoE) |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.9 Million packets per second (Mpps) |
| Layer 2 Features | VLAN, Spanning Tree Protocol (STP), Link Aggregation, Port Mirroring, MAC Address Table, Auto-Negotiation |
| Layer 3 Features | Static Routing, DHCP Relay, ARP Inspection, IP-MAC Binding |
| QoS (Quality of Service) | Layer 2 QoS with 4 priority queues; Traffic prioritization for voice, video, and data services |
| Network Protocols | IEEE 802.1p, IEEE 802.1Q VLAN Tagging, IEEE 802.3x Flow Control, IEEE 802.3af/at PoE, LLDP |
| Management | Web-based Graphical User Interface (GUI), SNMP, Cloud Management via GWN.Cloud, Command Line Interface (CLI), RMON |
| Cloud Management | Integration with Grandstream GWN.Cloud for cloud-based configuration, monitoring, and management |
| Security Features | VLAN Isolation, Access Control Lists (ACLs), Port Security, Storm Control, DHCP Snooping, 802.1X Authentication |
| PoE Power Budget | 60W total PoE power budget (for 4 PoE-enabled ports) |
| Power Supply Options | 48V DC Power Adapter (included) or Power over Ethernet (PoE) from a compatible PoE injector or switch |
| Power Consumption | Max Power Consumption: 80W (including PoE) |
| Dimensions (L x W x H) | 220mm x 127mm x 33mm |
| Weight | 0.75 kg (1.65 lbs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% (Non-condensing) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Storage Humidity | 5% to 90% (Non-condensing) |
| Certifications | CE, FCC, RoHS, UL, and other relevant safety certifications |
| Warranty | 1-Year Limited Warranty |
| Included Accessories | Quick Installation Guide, Power Adapter, Mounting Brackets (for wall-mounting), and Screws |
| LED Indicators | System Power (PWR), Network Status (LINK), PoE Status for each port |
| Operating System | Grandstream GWN Switch OS |
| VLAN Support | 802.1Q VLAN Tagging with support for up to 128 VLANs |
| Link Aggregation (LACP) | Supported for higher throughput and redundancy (IEEE 802.3ad) |
| IGMP Snooping | Supports IGMP Snooping for better multicast traffic management |
| Jumbo Frame Support | Supported (up to 9kB for high-performance applications) |
| Environmental Certifications | RoHS, CE, FCC compliant |
| Auto-MDI/MDIX | Auto-sensing for straight or crossover cables |
| MTBF (Mean Time Between Failures) | 200,000 hours |
| Traffic Monitoring | Real-time traffic statistics and historical usage logs |
