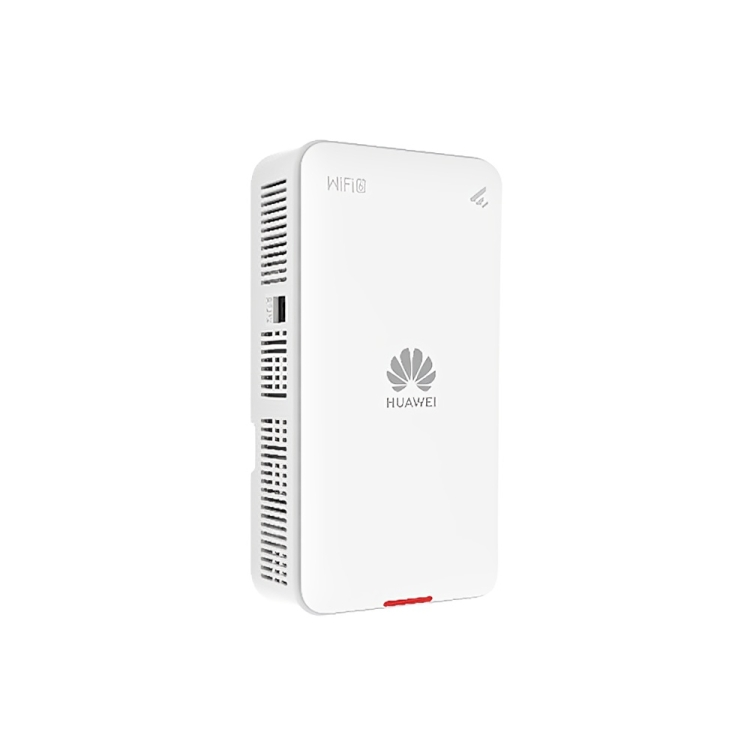

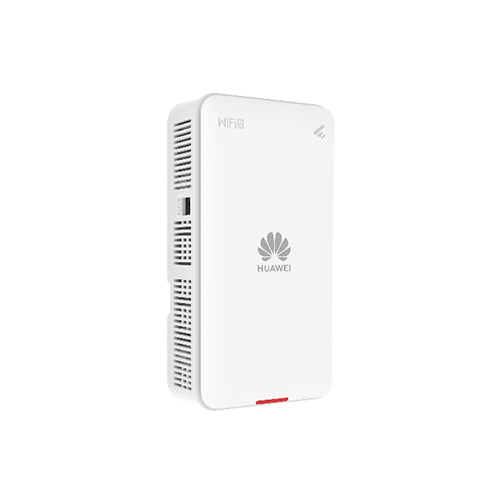

Huawei AP263 Wall Plate AP WiFi6 Indoor Dual Radio 2×2 MU-MIMO GEx2 BLE USB Smart Antennas Price in Dubai UAE
by
Huawei
SKU: AP263
|
Specifications
|
||
|---|---|---|
| Model | Huawei AP263 | |
| Form Factor | Wall plate (86 mm × 160 mm × 38 mm) | |
| Weight | 320 g (without packaging) | |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) | |
| Frequency Bands | Dual Band: 2.4 GHz and 5 GHz | |
| MIMO Configuration | 2×2 MU-MIMO (2 spatial streams per band) | |
| Maximum Data Rate | Up to 2.975 Gbps | |
| Ethernet Ports | 2 × RJ45 (10/100/1000 Mbps auto-sensing) | |
| USB Port | 1 × USB 2.0 Type-A (supports 5W power supply for IoT expansion) | |
| Bluetooth | BLE 5.0 | |
| Power Supply | Power over Ethernet (PoE) – IEEE 802.3at/af or DC adapter | |
| Maximum Power Consumption | 12 W | |
| Antenna Type | Internal smart antennas | |
| Antenna Gain | 2.4 GHz: 2 dBi per chain (1 dBi combined), 5 GHz: 3 dBi per chain (1 dBi combined), BLE: 4 dBi | |
| Transmit Power | 2.4 GHz: 20 dBm per chain (23 dBm combined), 5 GHz: 20 dBm per chain (23 dBm combined), BLE: < 10 dBm | |
| Operating Temperature | 0°C to 40°C | |
| Storage Temperature | –40°C to +70°C | |
| Humidity | 5% to 95% (non-condensing) | |
| Mounting Options | Wall, Ceiling, Junction Box | |
| Management Options | Huawei CloudCampus App, BLE console, Cloud-based Management | |
|
Specifications
|
||
|---|---|---|
| Model | Huawei AP263 | |
| Form Factor | Wall plate (86 mm × 160 mm × 38 mm) | |
| Weight | 320 g (without packaging) | |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) | |
| Frequency Bands | Dual Band: 2.4 GHz and 5 GHz | |
| MIMO Configuration | 2×2 MU-MIMO (2 spatial streams per band) | |
| Maximum Data Rate | Up to 2.975 Gbps | |
| Ethernet Ports | 2 × RJ45 (10/100/1000 Mbps auto-sensing) | |
| USB Port | 1 × USB 2.0 Type-A (supports 5W power supply for IoT expansion) | |
| Bluetooth | BLE 5.0 | |
| Power Supply | Power over Ethernet (PoE) – IEEE 802.3at/af or DC adapter | |
| Maximum Power Consumption | 12 W | |
| Antenna Type | Internal smart antennas | |
| Antenna Gain | 2.4 GHz: 2 dBi per chain (1 dBi combined), 5 GHz: 3 dBi per chain (1 dBi combined), BLE: 4 dBi | |
| Transmit Power | 2.4 GHz: 20 dBm per chain (23 dBm combined), 5 GHz: 20 dBm per chain (23 dBm combined), BLE: < 10 dBm | |
| Operating Temperature | 0°C to 40°C | |
| Storage Temperature | –40°C to +70°C | |
| Humidity | 5% to 95% (non-condensing) | |
| Mounting Options | Wall, Ceiling, Junction Box | |
| Management Options | Huawei CloudCampus App, BLE console, Cloud-based Management | |
